Mesh Insert Method (Patented)

This is a method in which mesh material (net) is uniformly stretched on a plastic frame with high tensile force to produce mesh chairs. “The mesh insert method” described here is an advanced molding technology upgrading the melt stick method to uniformly add tensile force simultaneously with molding plastic frame.
　

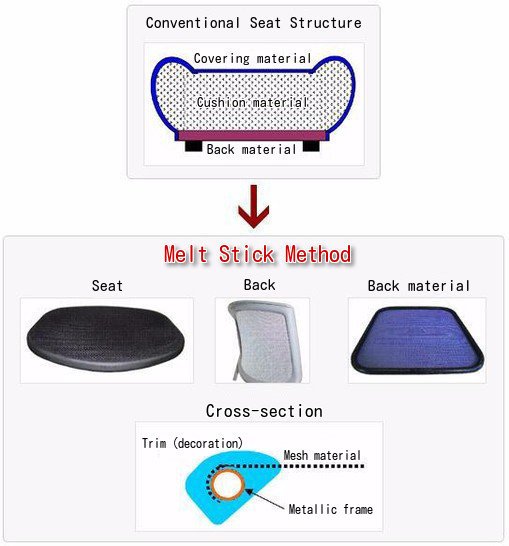

Features of the Melt Stick Method

１．Pressure on the seat is evenly dispersed when seated in use.
２．Fits flexibly when changing seating position to ensure stability and a comfortable feel.
３．Provides outstanding ventilation with the use of mesh material (net).
４．Lighter because cushion and back materials are not used.

Corresponds to wide-ranging shapes of metallic frames

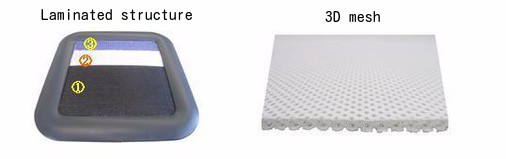

The method can be applied to laminated tensile mesh (net) and sponge-type materials, and 3D network (honeycomb mesh).

Use

１．Seat and seat back material for automobiles
２．Seat and seat back material for train carriages
３．Seat and seat back material for construction and farming machines
４．Seats for wheelchairs
５．Seat and back material for chairs for institutions and halls
６．Seat and back material for office chairs
